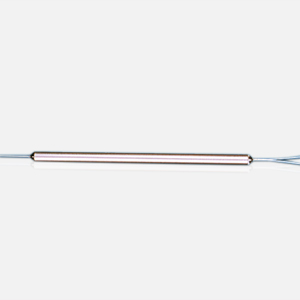

Fiber optic splitters are crucial components in both passive and active optical networks, enabling the division of optical signals for distribution across multiple fibers. Available in configurations such as power splitters and wavelength division multiplexers (WDMs), these devices efficiently manage and distribute light signals while minimizing loss. WDM splitters, in particular, allow for multiple wavelengths of light to be transmitted simultaneously through a single fiber, optimizing bandwidth usage in telecommunications networks. Fiber optic splitters are essential for ensuring reliable signal distribution in applications like FTTH (fiber-to-the-home) networks, data centers, and broadband systems.
| Operating Wavelength Range | 1310 ± 40 nm & 1550nm ± 40 nm |
| Insertion Loss | ≤ 5.6 dB >≤ 5.9 dB |
| Uniformity (typical) | ≤ 1.2 dB >≤ 1.6 dB |
| Return Loss | ≥ 50 dB |
| PDL | ≤ 0.1 dB >≤ 0.15 dB |
| TDL | ≤ 0.2 dB (-10°C ~ +75°C) >≤ 0.4 dB (-40°C ~ +85°C) |
| Operating & Storage Temperature | -40°C ~ +85°C |
| Package Dimensions – Light Duty (B) | 3.0mm (ø) x 55.0mm (L) |
| Package Dimensions – Medium Duty (L) | 3.0mm (ø) x 70.0mm (L) |
For tailored Fiber Optics solutions that address your specific needs contact us today
